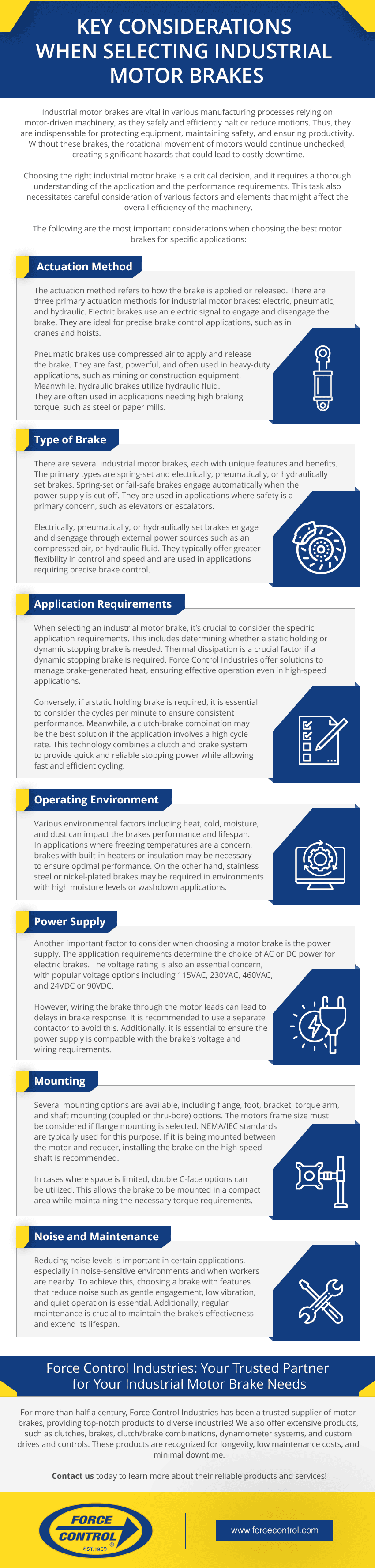

Click to ExpandKey-Considerations-When-Selecting-Industrial-Motor-Brakes

Industrial motor brakes are vital in various manufacturing processes relying on motor-driven machinery, as they safely and efficiently halt or reduce motions. Thus, they are indispensable for protecting equipment, maintaining safety, and ensuring productivity. Without these brakes, the rotational movement of motors would continue unchecked, creating significant hazards that could lead to costly downtime.

Choosing the right industrial motor brake is a critical decision, and it requires a thorough understanding of the application and the performance requirements. This task also necessitates careful consideration of various factors and elements that might affect the overall efficiency of the machinery.

The following are the most important considerations when choosing the best motor brakes for specific applications:

1. Actuation Method

The actuation method refers to how the brake is applied or released. There are three primary actuation methods for industrial motor brakes: electric, pneumatic, and hydraulic. Electric brakes use an electric signal to engage and disengage the brake. They are ideal for precise brake control applications, such as in cranes and hoists.

Pneumatic brakes use compressed air to apply and release the brake. They are fast, powerful, and often used in heavy-duty applications, such as mining or construction equipment. Meanwhile, hydraulic brakes utilize hydraulic fluid. They are often used in applications needing high braking torque, such as steel or paper mills.

2. Type of Brake

There are several industrial motor brakes, each with unique features and benefits. The primary types are spring-set and electrically, pneumatically, or hydraulically set brakes. Spring-set or fail-safe brakes engage automatically when the power supply is cut off. They are used in applications where safety is a primary concern, such as elevators or escalators.

Electrically, pneumatically, or hydraulically set brakes engage and disengage through external power sources such as an compressed air, or hydraulic fluid. They typically offer greater flexibility in control and speed and are used in applications requiring precise brake control.

3. Application Requirements

When selecting an industrial motor brake, it’s crucial to consider the specific application requirements. This includes determining whether a static holding or dynamic stopping brake is needed. Thermal dissipation is a crucial factor if a dynamic stopping brake is required. Force Control Industries offer solutions to manage brake-generated heat, ensuring effective operation even in high-speed applications.

Conversely, if a static holding brake is required, it is essential to consider the cycles per minute to ensure consistent performance. Meanwhile, a clutch-brake combination may be the best solution if the application involves a high cycle rate. This technology combines a clutch and brake system to provide quick and reliable stopping power while allowing fast and efficient cycling.

4. Operating Environment

Various environmental factors including heat, cold, moisture, and dust can impact the brakes performance and lifespan. In applications where heat is a concern, brakes with built-in heaters or insulation may be necessary to ensure optimal performance. On the other hand, stainless steel or nickel-plated brakes may be required in environments with high moisture levels or washdown applications.

5. Power Supply

Another important factor to consider when choosing a motor brake is the power supply. The application requirements determine the choice of AC or DC power for electric brakes. The voltage rating is also an essential concern, with popular voltage options including 115VAC, 230VAC, 460VAC, and 24VDC or 90VDC.

However, wiring the brake through the motor leads can lead to delays in brake response. It is recommended to use a separate contactor to avoid this. Additionally, it is essential to ensure the power supply is compatible with the brake’s voltage and wiring requirements.

6. Mounting

Several mounting options are available, including flange, foot, bracket, torque arm, and shaft mounting (coupled or thru-bore) options. The motors frame size must be considered if flange mounting is selected. NEMA/IEC standards are typically used for this purpose. If it is being mounted between the motor and reducer, installing the brake on the high-speed shaft is recommended.

In cases where space is limited, double C-face options can be utilized. This allows the brake to be mounted in a compact area while maintaining the necessary torque requirements.

7. Noise and Maintenance

Reducing noise levels is important in certain applications, especially in noise-sensitive environments and when workers are nearby. To achieve this, choosing a brake with features that reduce noise such as gentle engagement, low vibration, and quiet operation is essential. Additionally, regular maintenance is crucial to maintain the brake’s effectiveness and extend its lifespan.
