Assembled Brake Motors

Why Buy Just the Brake When You Can Get the Motor Too?

MagnaShear Motor Brakes are a great improvement when used as an upgrade replacing competitive brakes. But why stop there. Force Control can furnish the brake mounted on a motor, tested, run, and ready to go. Advantages include ;

  1. Brake and motor perfectly matched.
  2. Brake is properly mounted saving time, and stress.
  3. Brake an motor can be painted together, especially if marine duty of washdown

Designed with Oil Shear Technology the MagnaShear Motor Brakes typically mount to the back of a brake motor. The newly released coupler brakes are double C-face and typically mount between the motor and the gear box. They can survive the harsh environments of mining, manufacturing, material handling as well as packaging and food processing with minimal maintenance and no adjustment. The totally enclosed rugged housings keep dirt and moisture out while reducing noise and extracting heat.

“Oil Shear Technology” perfected over 40 years by Force Control Industries provides the brake with up to 10 times the normal life of dry friction units with minimal maintenance and “No Adjustment – Ever”.

Learn more about Oil Shear Technology

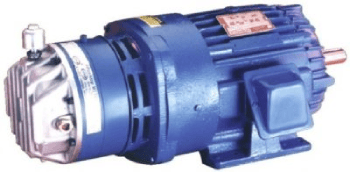

MagnaShear-MSB8 Assembled Brake Motor
  • Up to 10 times longer life
  • Electric Release, Spring Set
  • Minimal Maintenance Cost
  • No Adjustment – Ever!
  • Brake and Motor Perfectly Matched
  • Brake and Motor Painted Together
  • Various Motor Options
  • Marine and Low Temperature Options
  • Severe Duty Brake and Motor
  • Crane Duty



Specifications

Specifications for the brakes only are shown. Contact Force Control Industries for specification detail for the complete MagnaShear Assembled Brake Motor.

Dimensions

Dimensions are shown for the brake only. Contact Force Control Industries for specification detail or drawings for the MagnaShear Assembled Brake Motor.

How To Order

MagnaShear Assembled Brake Motors are typically custom orders. Contact Force Control Industries for ordering information.

Selection

Selection information is for information only. Contact Force Control Industries for specific application information.

Oil Shear Technology

Oil Shear Technology is the heart of MagnaShear Assembled Brake Motors.

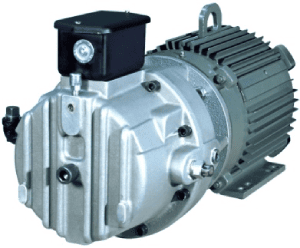

MagnaShear Assembled Motor Brake


MagnaShear-MSB8
  1. Torque 6 Lb. Ft. to 1250 Lb. Ft.
  2. Fits 56 to 440T frame motors.
  3. IEC and Custom available.
  4. Spring Set Electric Release 115 VAC
  5. Other AC and DC voltages available
  6. Clamped-Split-Quill saves motor shaft and keyway
  7. Wash Down, Marine Duty, Severe Duty
  8. Manual Release, lock out, and released indicator available
  9. Can also be furnished as an assembled brake motor.

Posistop X Class Assembled Brake Motor


Posistop X Class Assembled
  1. Torque 6 to 300 Lb. Ft.
  2. Fits 56 to 286T frame motors. IEC and Custom available
  3. Spring Set Air/Hydraulic release
  4. Clamped-Split-Quill saves motor shaft and keyway
  5. Hazardous Duty Available (with Haz. Duty motor & valve)
  6. Wash Down, Marine Duty, Severe Duty

Posistop Assembled Brake Motor


Posistop Assembled Brake Motor
  1. Torque 6 Lb. Ft. to 2030 Lb. Ft.
  2. Fit 56 to 440T motors. IEC and Custom available
  3. Spring Set - Air or Hydraulic Release
  4. Clamped-Split-Quill saves motor shaft and keyway
  5. Wash Down, Marine Duty, Severe and Hazardous Duty
  6. Hazardous Duty Available (with Haz. Duty motor & valve)
